100G and 200G Optical Transceivers Product Detail

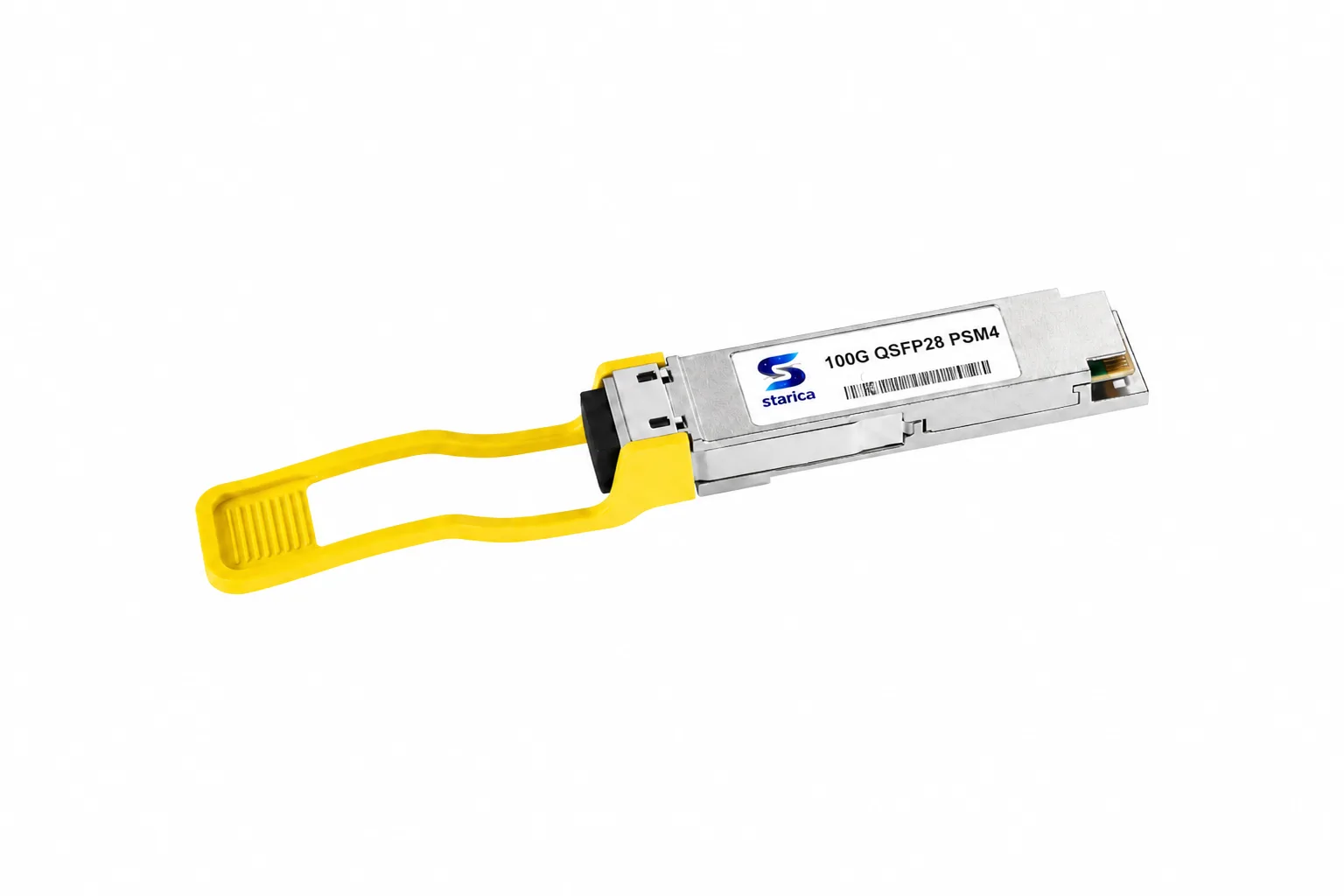

100G QSFP28 PSM4 is a QSFP28 PSM4 option using MPO-12 for 500m single-mode fiber links.
Use the published model direction and key parameters for selection and sample planning. Confirm compatibility coding, optional temperature grade, and production parameters in the formal specification or order document.
Specs & Features
For the latest specification and samples, contact sales@staricatech.com.
100G QSFP28 PSM4 is designed for 500m links using MPO-12. Selection must confirm the host form factor, electrical interface, PMD, FEC, fiber mapping, power and thermal limits, software version and the remote endpoint; the model name alone does not establish interoperability.
Selection FAQ
Only if the host supports it. The parallel lanes on MPO-12 can be split toward lower-rate ports, but the source port has to be configured for that breakout mode and every branch port must accept the resulting rate. Confirm the port mode on the target platform first: the cable alone does not create a breakout.
100G QSFP28 PSM4 spreads its lanes across parallel fiber on MPO-12, so it needs a parallel trunk and suits breakout planning. A duplex option carries the same rate over one fiber pair on LC, which fits structured cabling that was never built for parallel trunks. The two are not interchangeable even though both are single-mode.
Give the host vendor, model and software version at both ends, the QSFP28 port or lane mode, the operating temperature range, the quantity per site and the target delivery date. For 100G QSFP28 PSM4 also state whether the link stays at full rate or breaks out and which MPO-12 trunk is already installed. Compatibility is confirmed per platform, so the host details matter as much as the optical specification.
Related Products

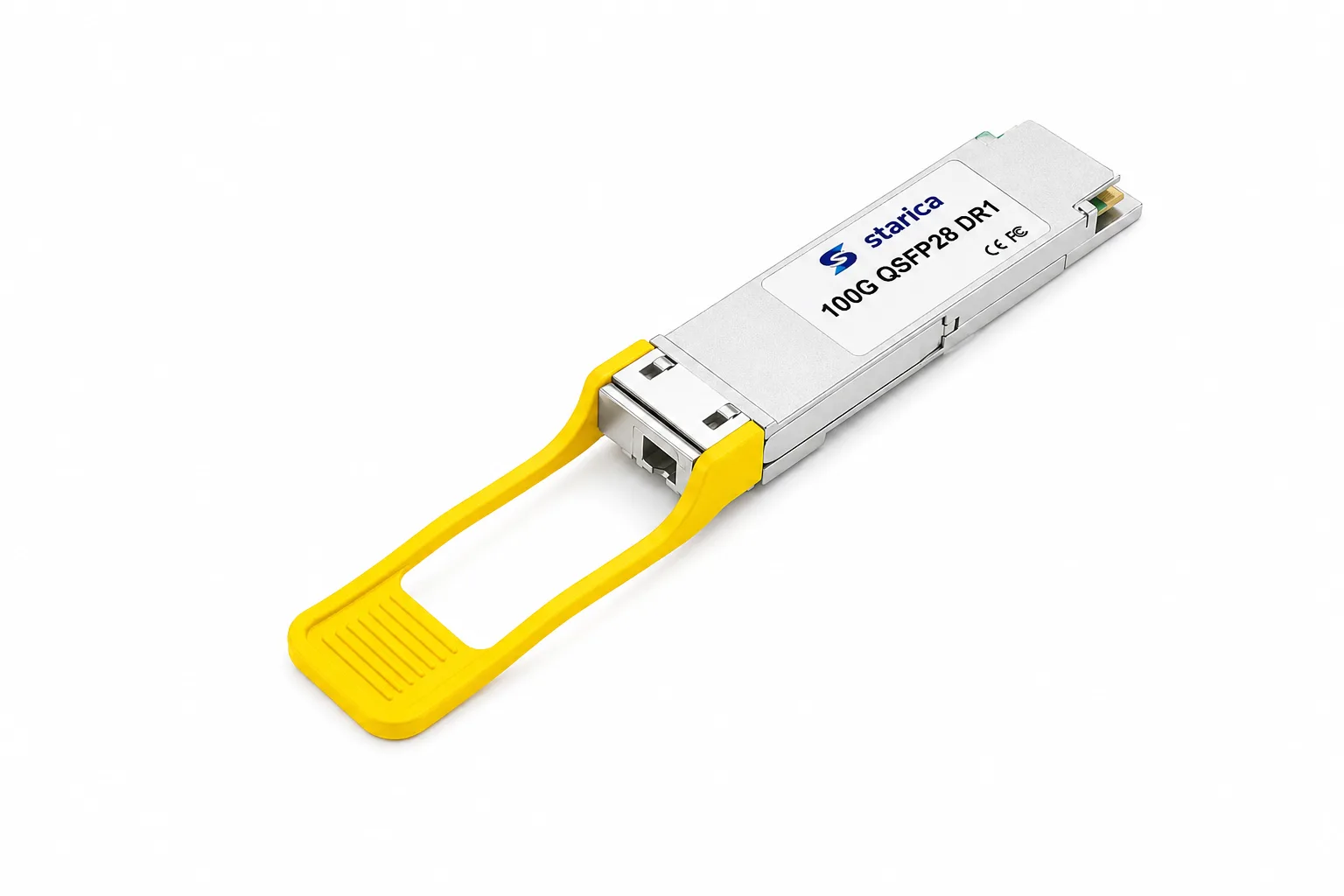

100G QSFP28 DR1 is a QSFP28 DR1 option using Duplex LC for 500m single-mode fiber links.

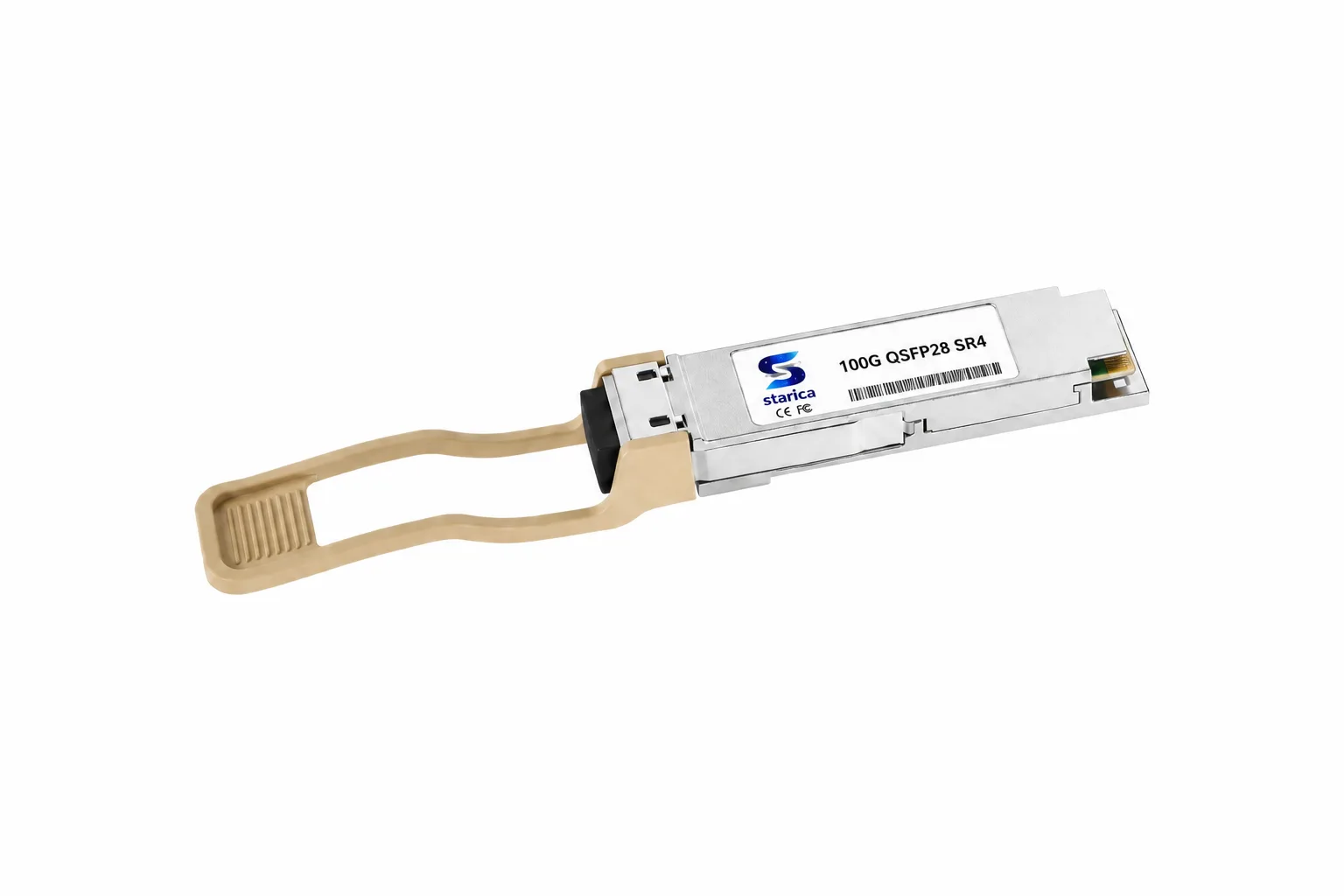

100G QSFP28 SR4 is a QSFP28 SR4 option using MPO-12 for 70m OM3 / 100m OM4 multimode fiber links.

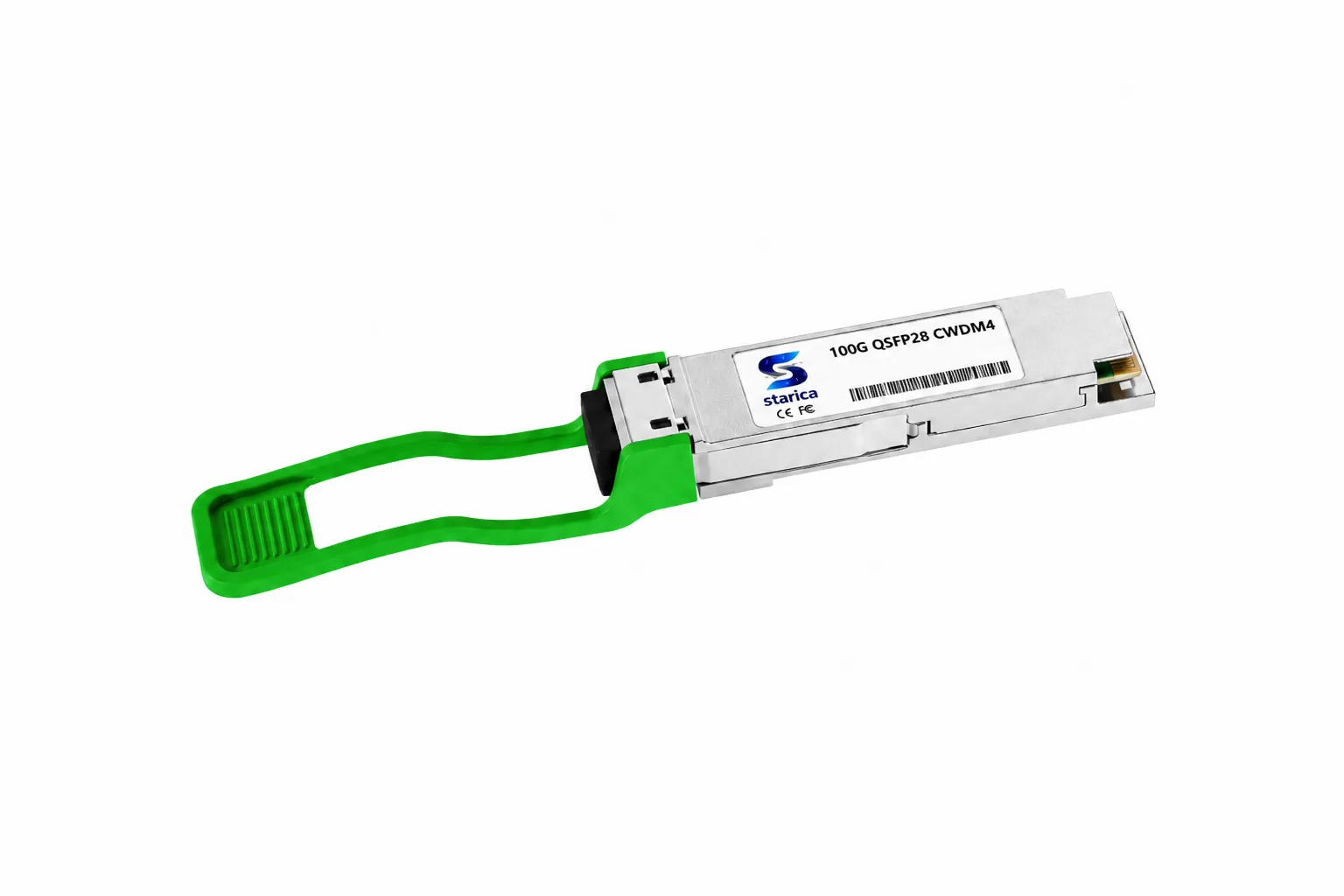

100G QSFP28 CWDM4 is a QSFP28 CWDM4 option using Duplex LC for 2km single-mode fiber links.
