10G SFP+ Transceivers Product Detail
10G SFP+ SR is a SFP+ SR option using Duplex LC for 300m OM3 / 400m OM4 multimode fiber links.
Use the published model direction and key parameters for selection and sample planning. Confirm compatibility coding, optional temperature grade, and production parameters in the formal specification or order document.
Specs & Features
For the latest specification and samples, contact sales@staricatech.com.
10G SFP+ SR is designed for 300m OM3 / 400m OM4 links using Duplex LC. Selection must confirm the host form factor, electrical interface, PMD, FEC, fiber mapping, power and thermal limits, software version and the remote endpoint; the model name alone does not establish interoperability.
Selection FAQ
The specification lists 300m OM3 / 400m OM4. Multimode reach is bounded by modal bandwidth, so the fiber grade already in the ground decides the usable distance rather than the module. Re-check the loss budget whenever patch panels or splices sit in the path.
No. 10G SFP+ SR is a multimode transceiver on Duplex LC; driving it into single-mode fiber loses far too much power to close the link. Match the module to the installed fiber, or select a single-mode PMD instead.
Give the host vendor, model and software version at both ends, the SFP+ port or lane mode, the operating temperature range, the quantity per site and the target delivery date. For 10G SFP+ SR also state the installed fiber grade, the Duplex LC trunk type and the measured link distance. Compatibility is confirmed per platform, so the host details matter as much as the optical specification.
Related Products

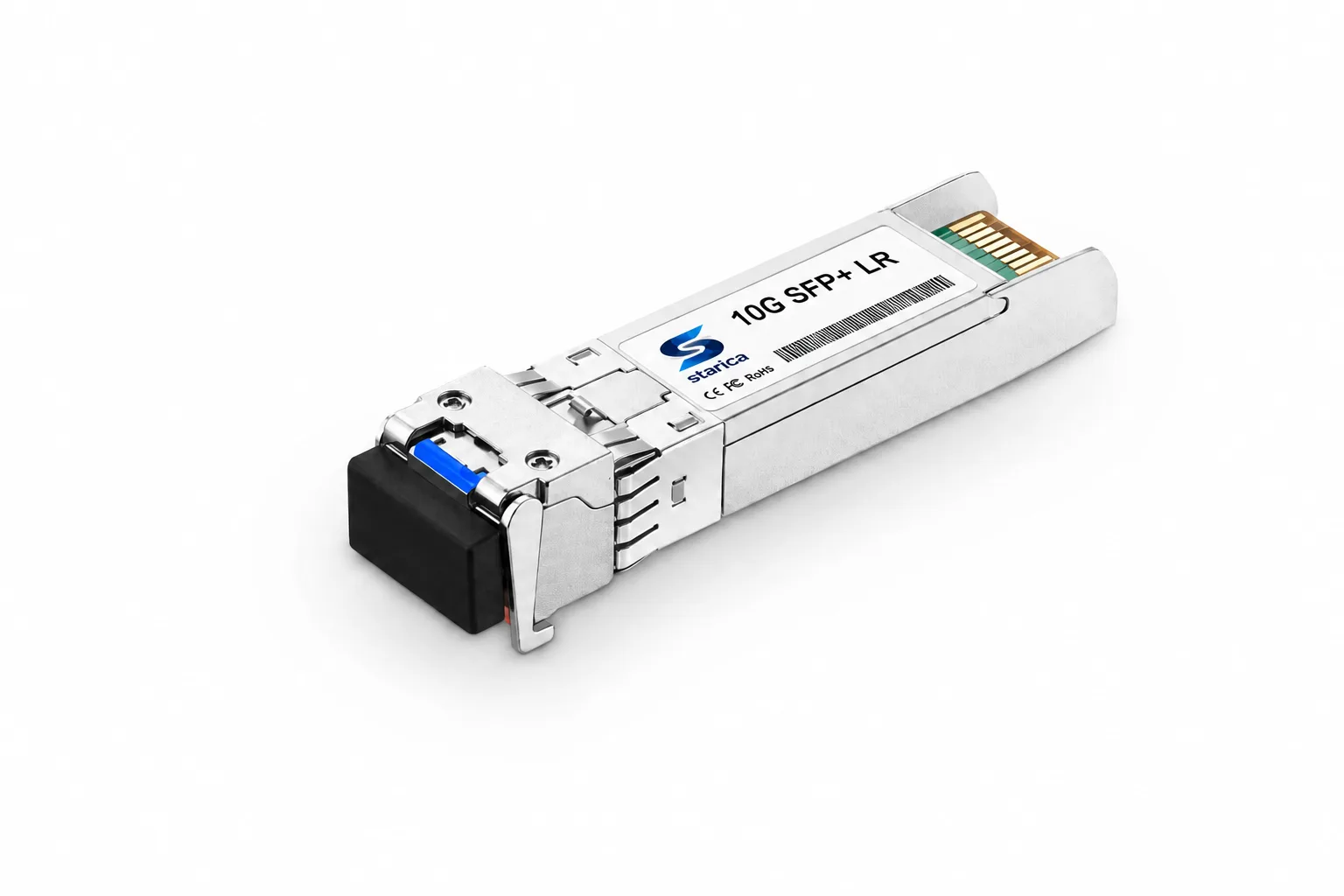

10G SFP+ LR is a SFP+ LR option using Duplex LC for 10km single-mode fiber links.
