10G SFP+ Transceivers Product Detail

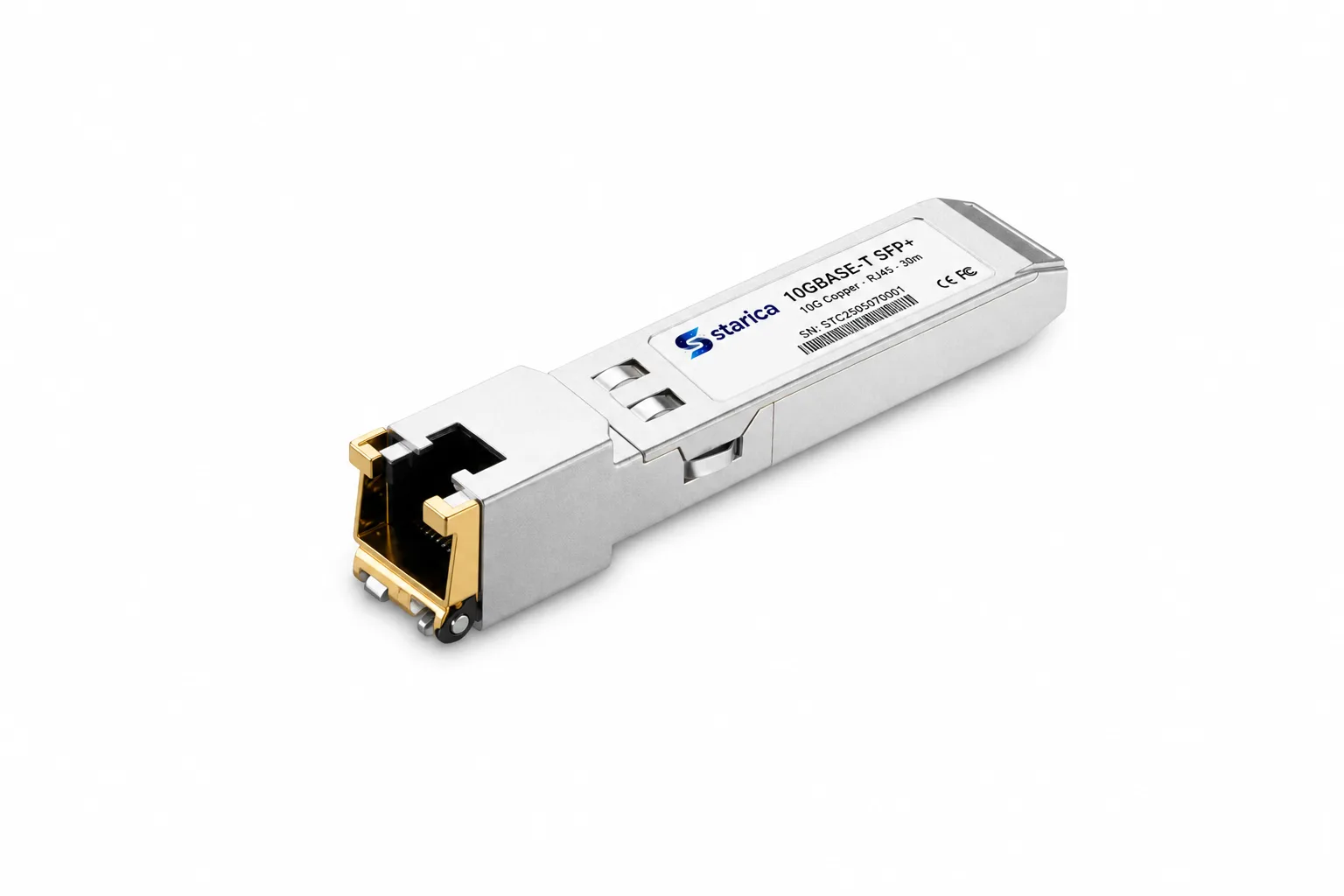

10GBASE-T SFP+ Copper is a SFP+ Copper option using RJ45 for 30m Cat 6a / Cat 7 copper links.
Use the published model direction and key parameters for selection and sample planning. Confirm compatibility coding, optional temperature grade, and production parameters in the formal specification or order document.
Specs & Features
For the latest specification and samples, contact sales@staricatech.com.
10GBASE-T SFP+ Copper is designed for 30m Cat 6a / Cat 7 links using RJ45. Selection must confirm the host form factor, electrical interface, PMD, FEC, fiber mapping, power and thermal limits, software version and the remote endpoint; the model name alone does not establish interoperability.
Selection FAQ
RJ45 copper cabling, with the specification listing 30m Cat 6a / Cat 7. The category rating and the quality of the installed patch plant set the achievable rate, so verify the existing cabling instead of assuming the port speed.
Not always. 10GBASE-T SFP+ Copper depends on the host supporting the speeds it presents, and some platforms allow copper modules only in specific ports or software versions. Confirm support on the target platform before ordering.
Give the host vendor, model and software version at both ends, the SFP+ port or lane mode, the operating temperature range, the quantity per site and the target delivery date. For 10GBASE-T SFP+ Copper also state the installed cable category and the link speeds the port has to negotiate. Compatibility is confirmed per platform, so the host details matter as much as the optical specification.
