800G Optical Transceivers: OSFP and QSFP-DD Product Detail
800G OSFP SR8 is a OSFP SR8 option using MPO-16 for 100m OM4 multimode fiber links.
Use the published model direction and key parameters for selection and sample planning. Confirm compatibility coding, optional temperature grade, and production parameters in the formal specification or order document.
Specs & Features
For the latest specification and samples, contact sales@staricatech.com.
800G OSFP SR8 is designed for 100m OM4 links using MPO-16. Selection must confirm the host form factor, electrical interface, PMD, FEC, fiber mapping, power and thermal limits, software version and the remote endpoint; the model name alone does not establish interoperability.
Selection FAQ
The specification lists 100m OM4. Multimode reach is bounded by modal bandwidth, so the fiber grade already in the ground decides the usable distance rather than the module. Re-check the loss budget whenever patch panels or splices sit in the path.
The same PMD, the same fiber grade, and MPO-16 polarity and lane order. Parallel multimode links such as 800G OSFP SR8 fail in confusing ways when polarity is wrong: the port may show light without ever coming up, so verify the trunk type before troubleshooting the module.
Give the host vendor, model and software version at both ends, the OSFP port or lane mode, the operating temperature range, the quantity per site and the target delivery date. For 800G OSFP SR8 also state the installed fiber grade, the MPO-16 trunk type and the measured link distance. Compatibility is confirmed per platform, so the host details matter as much as the optical specification.
Related Products
800G OSFP VR8 is a OSFP VR8 option using Dual MPO-12 / MPO-16 for 50m OM4/5 multimode fiber links.
800G OSFP DR8 is a OSFP DR8 option using MPO-16 for 500m single-mode fiber links.

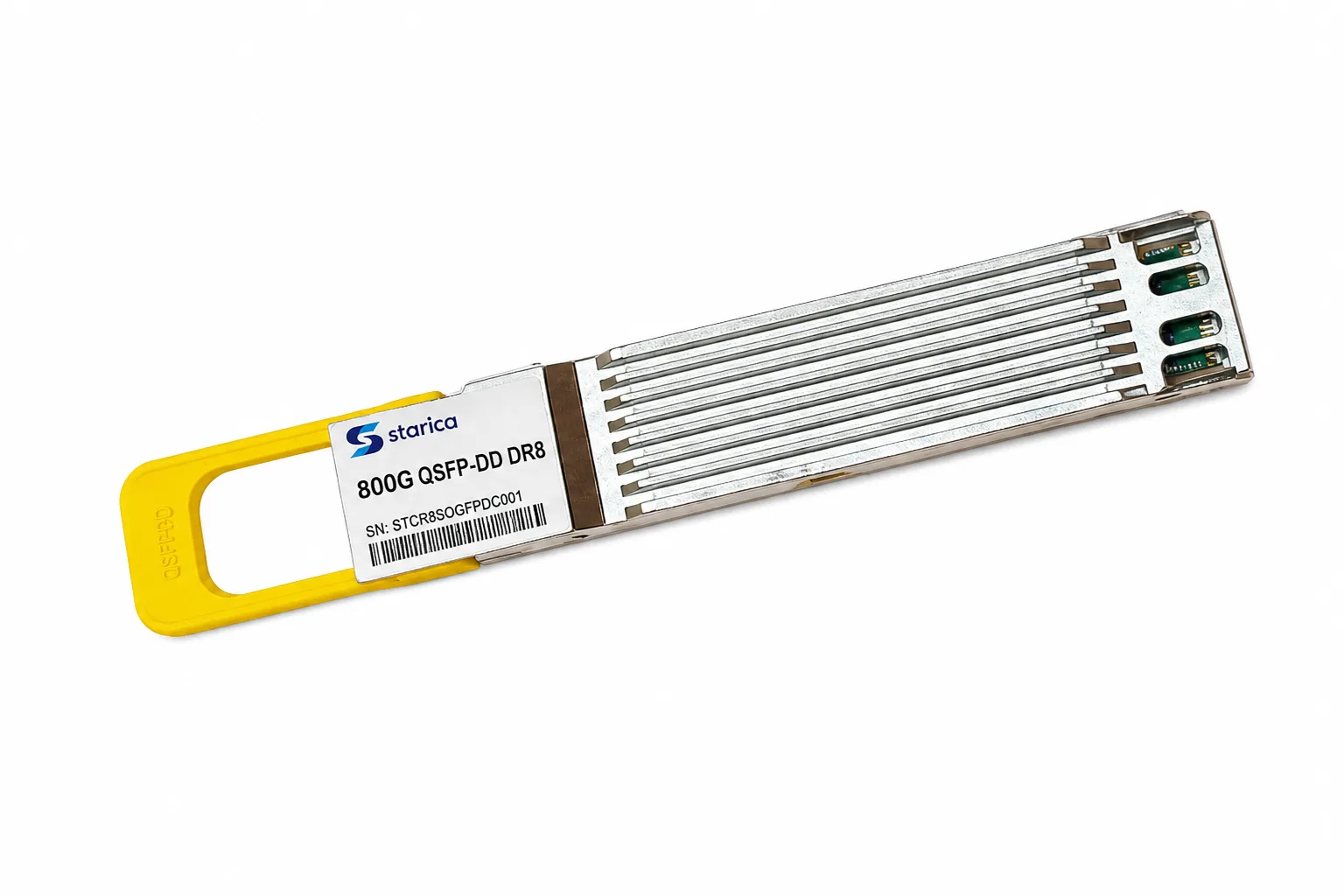

800G QSFP-DD DR8 is a QSFP-DD DR8 option using MPO-16 for 500m single-mode fiber links.
